Building Designer & Draftsperson — Bateau Bay, Central Coast

Drawings that
get the job done.

Residential drafting and design for builders, owners and developers across the Central Coast, Newcastle, Lake Macquarie and Sydney.

Send enquiry

Practical residential design,
drawn clearly and ready to move forward.

Residential drafting and design for approvals, builder pricing, client sign-off and practical on-site decisions.

AutoCAD · SketchUp · ArchiCAD · DA & CDC packages · 3D visualisations

Services

What I do

01

Renovations, additions & alterations

Measured, documented, and ready for approval — from a rear extension to a full internal rework.

02

Granny flats, decks, garages & pergolas

03

Existing house measure-ups & as-builts

04

DA & CDC drawing packages

05

Concept plans & layout options

06

3D visualisations

07

Overflow drafting for builders

Work

Selected work

A cross-section of recent residential work — 3D perspectives, floor plans, construction details, and rendered visualisations.

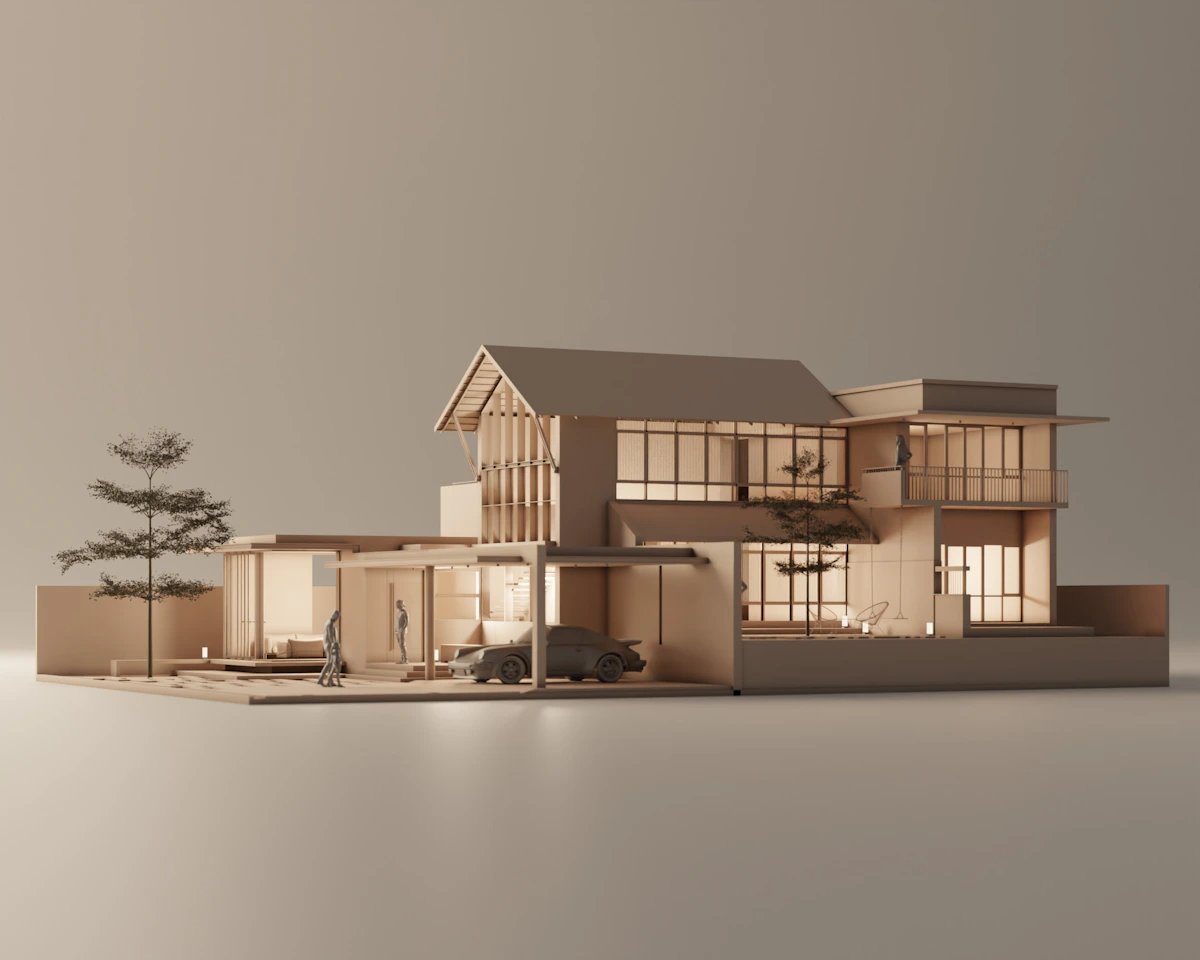

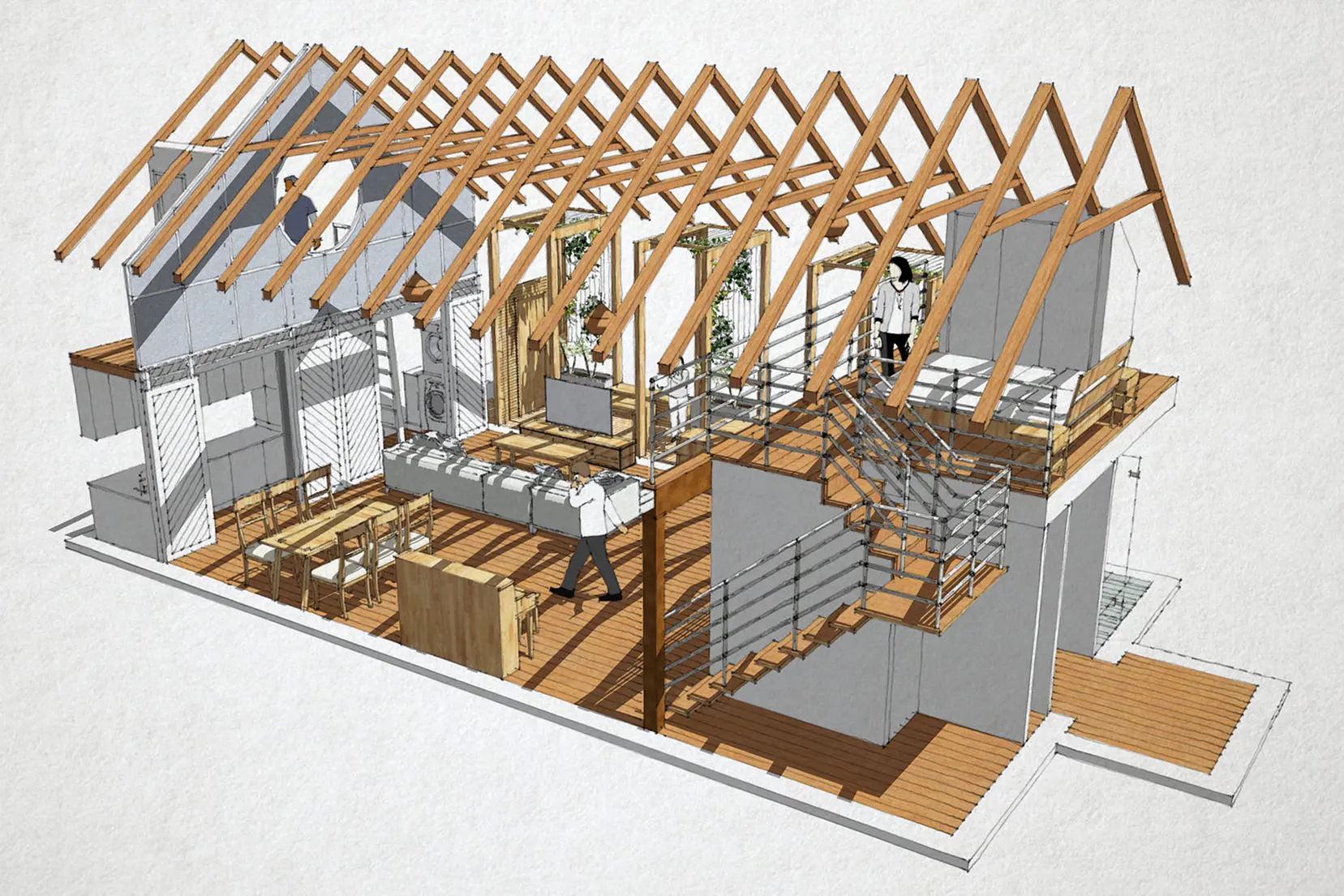

Exploded 3D residential perspective
Exploded 3D residential perspective

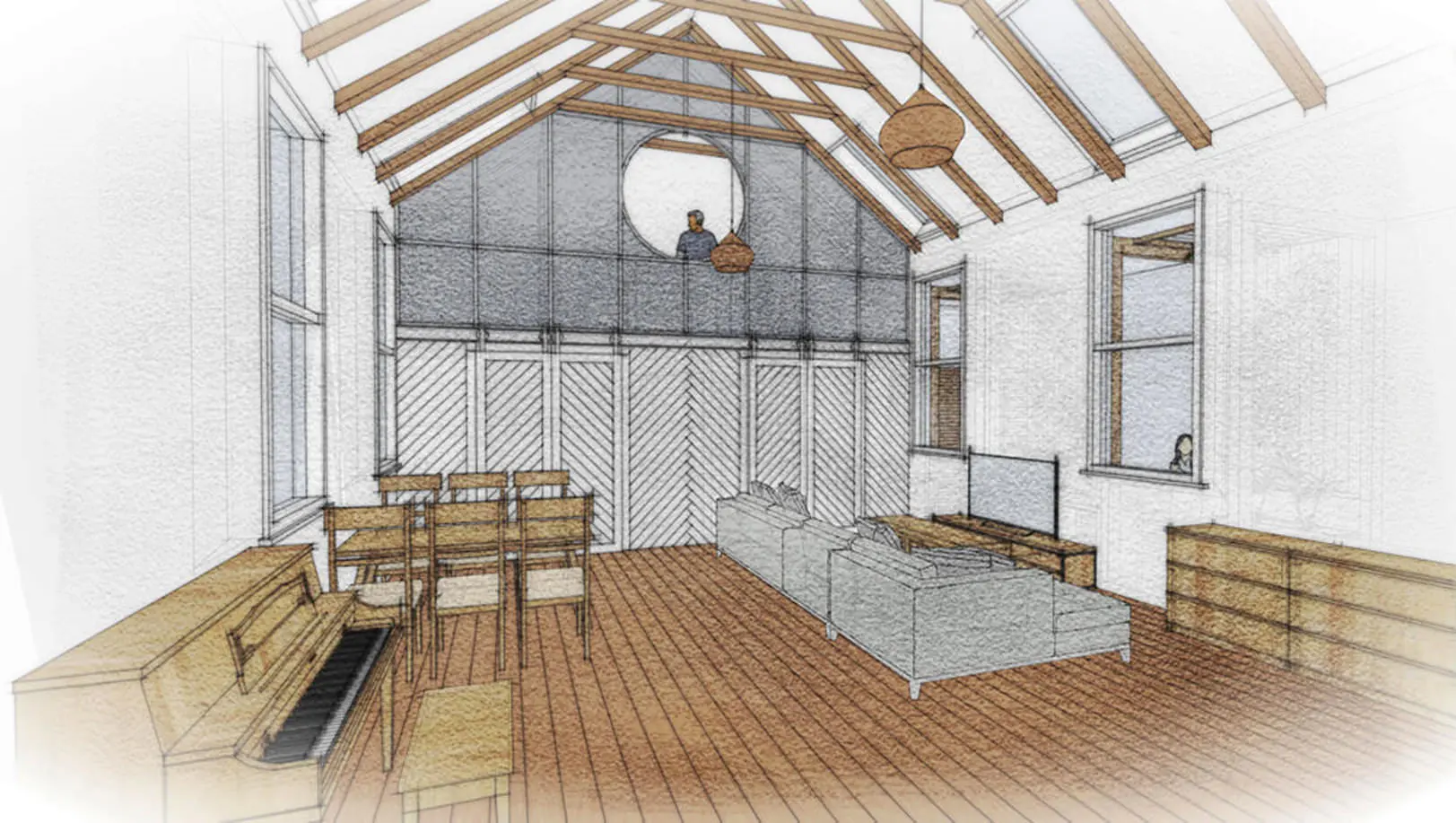

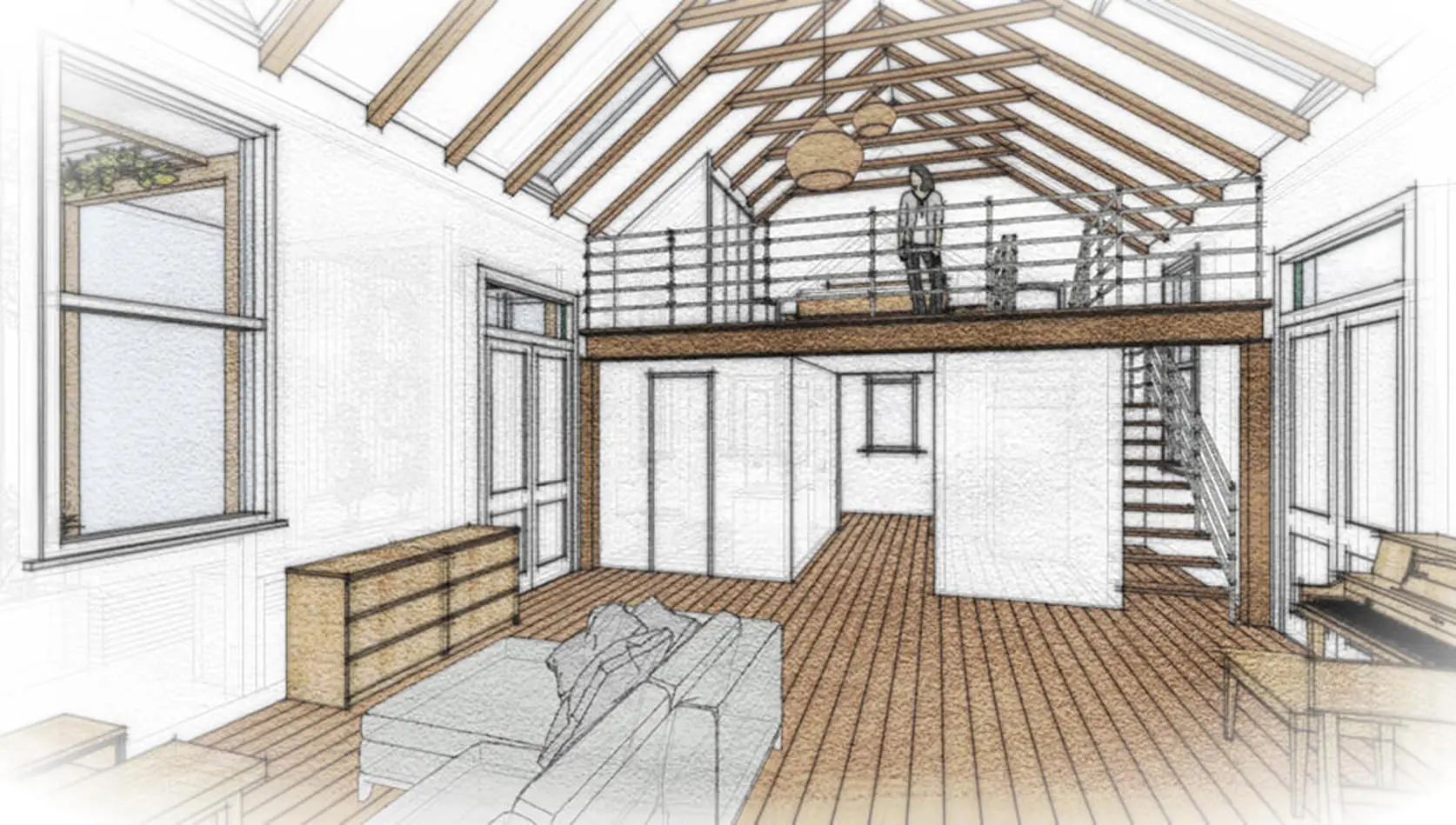

Interior volume and loft study
Interior volume and loft study

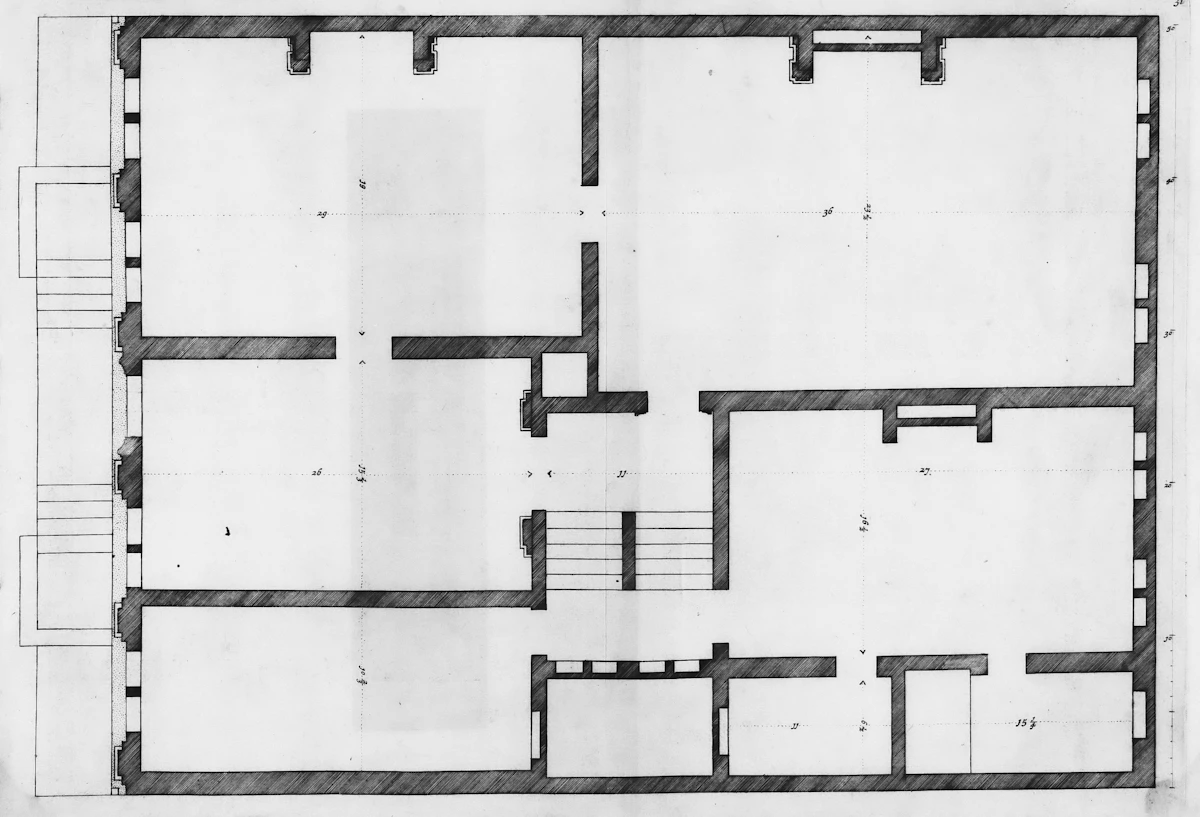

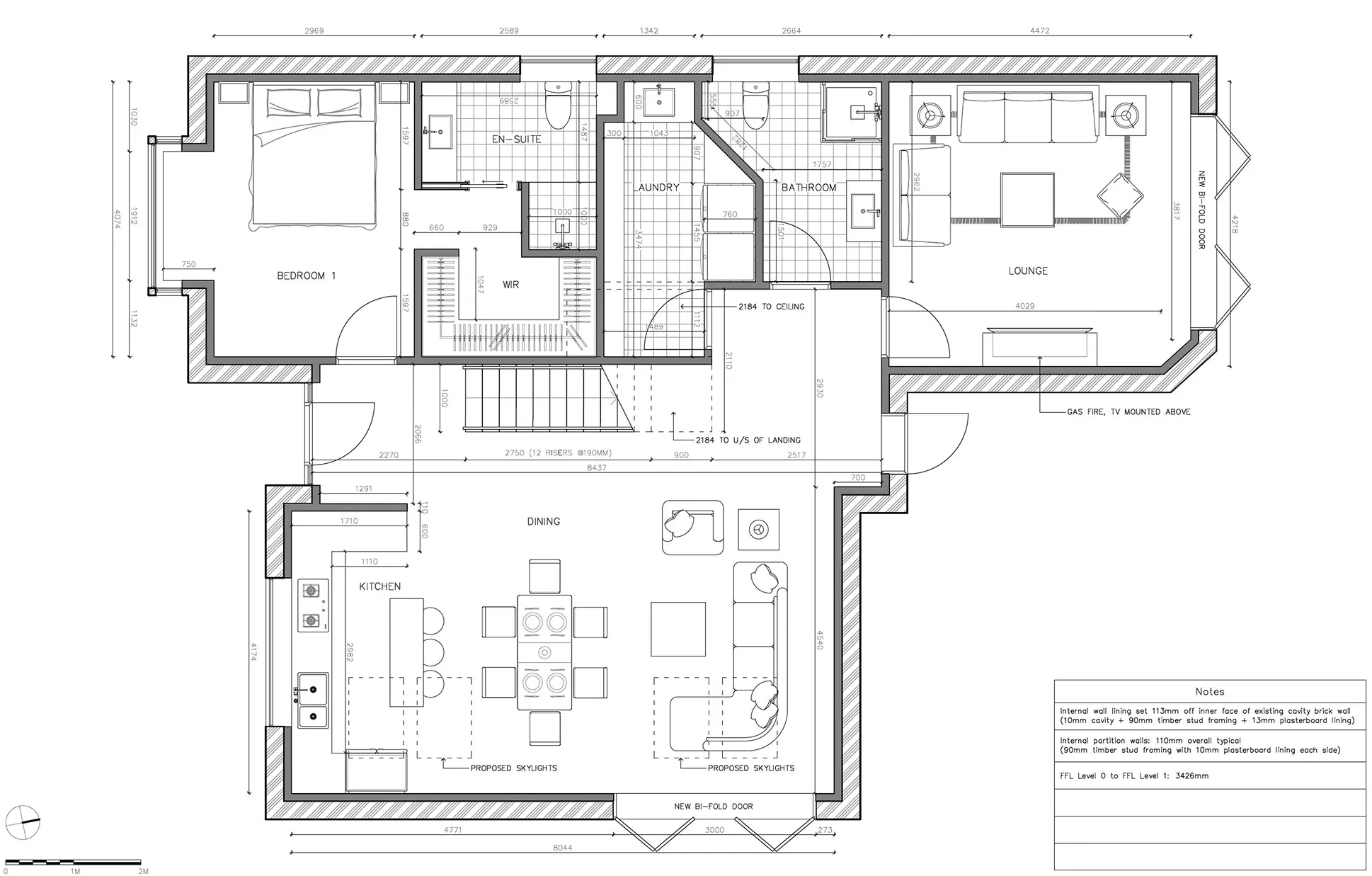

Proposed residential floor plan
Proposed residential floor plan

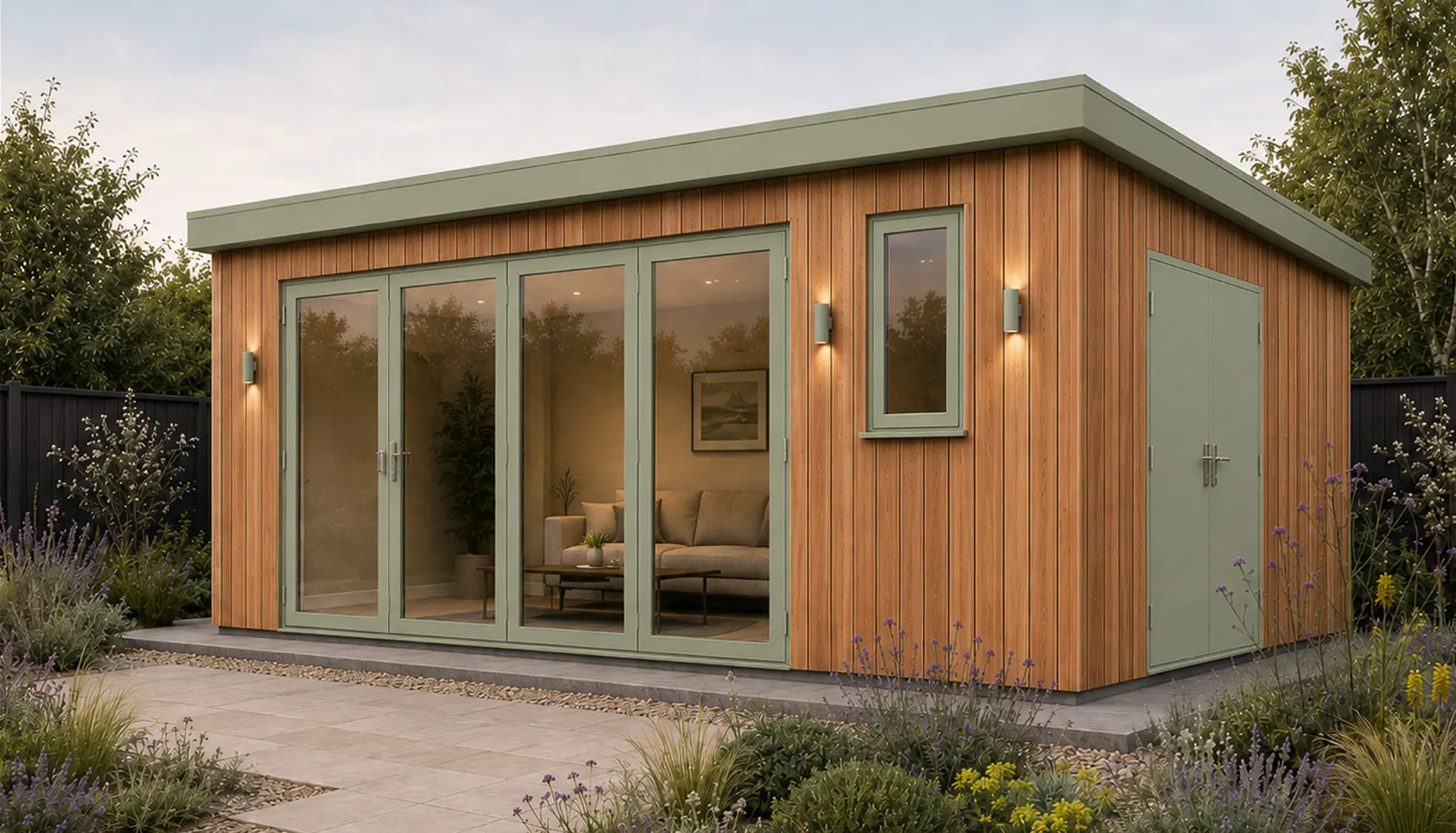

Rendered garden studio concept
Rendered garden studio concept

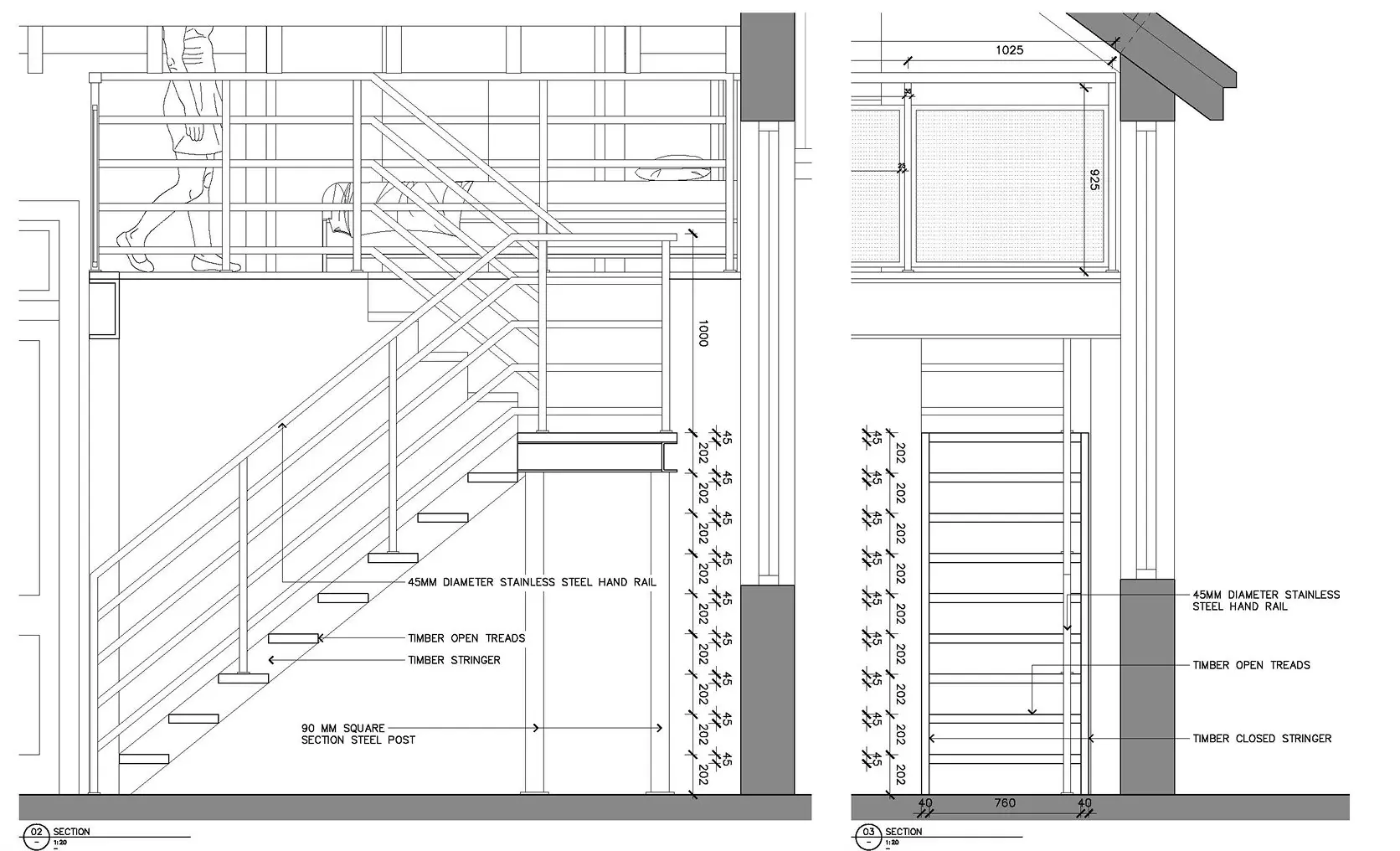

Stair and balustrade details
Stair and balustrade details

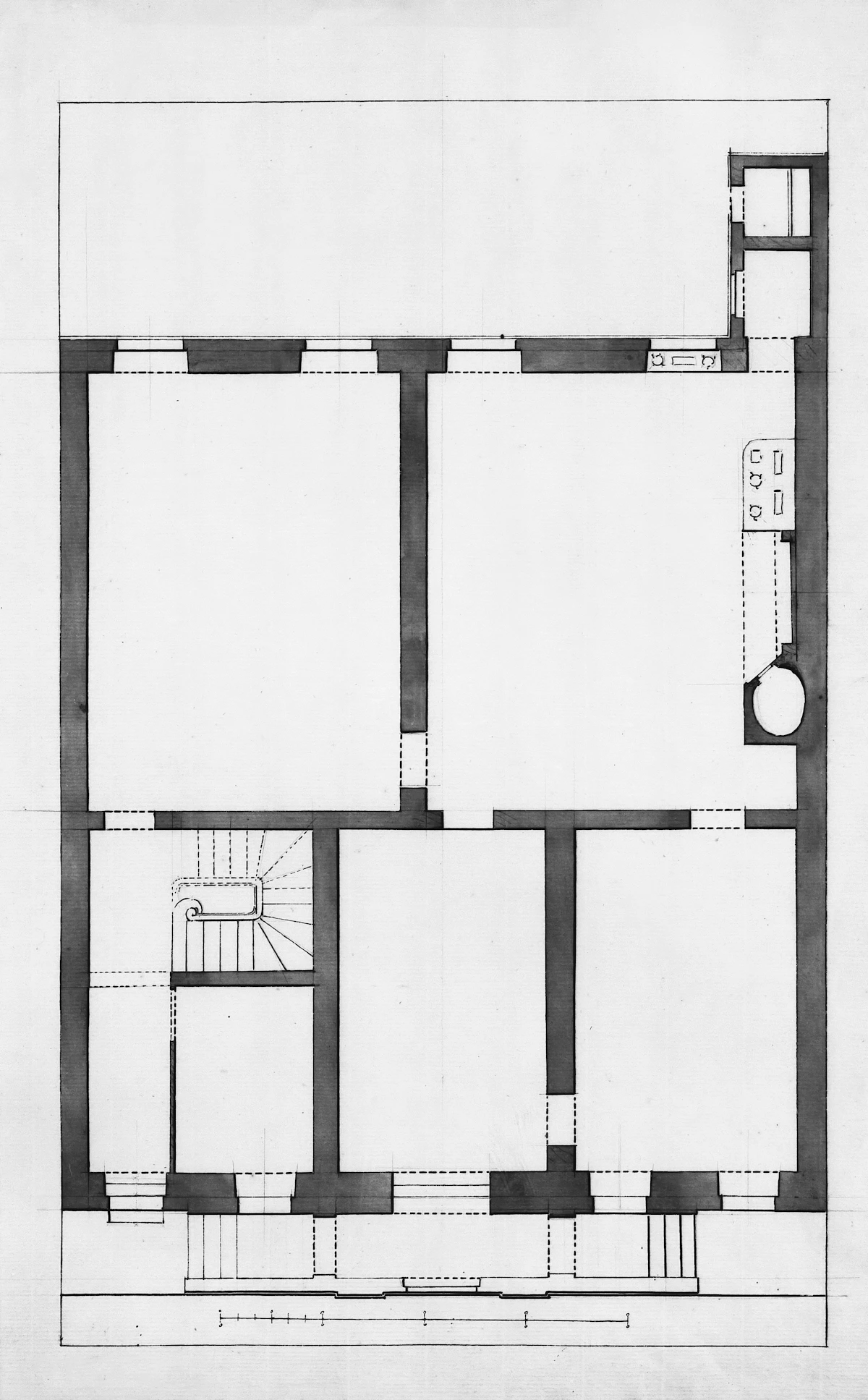

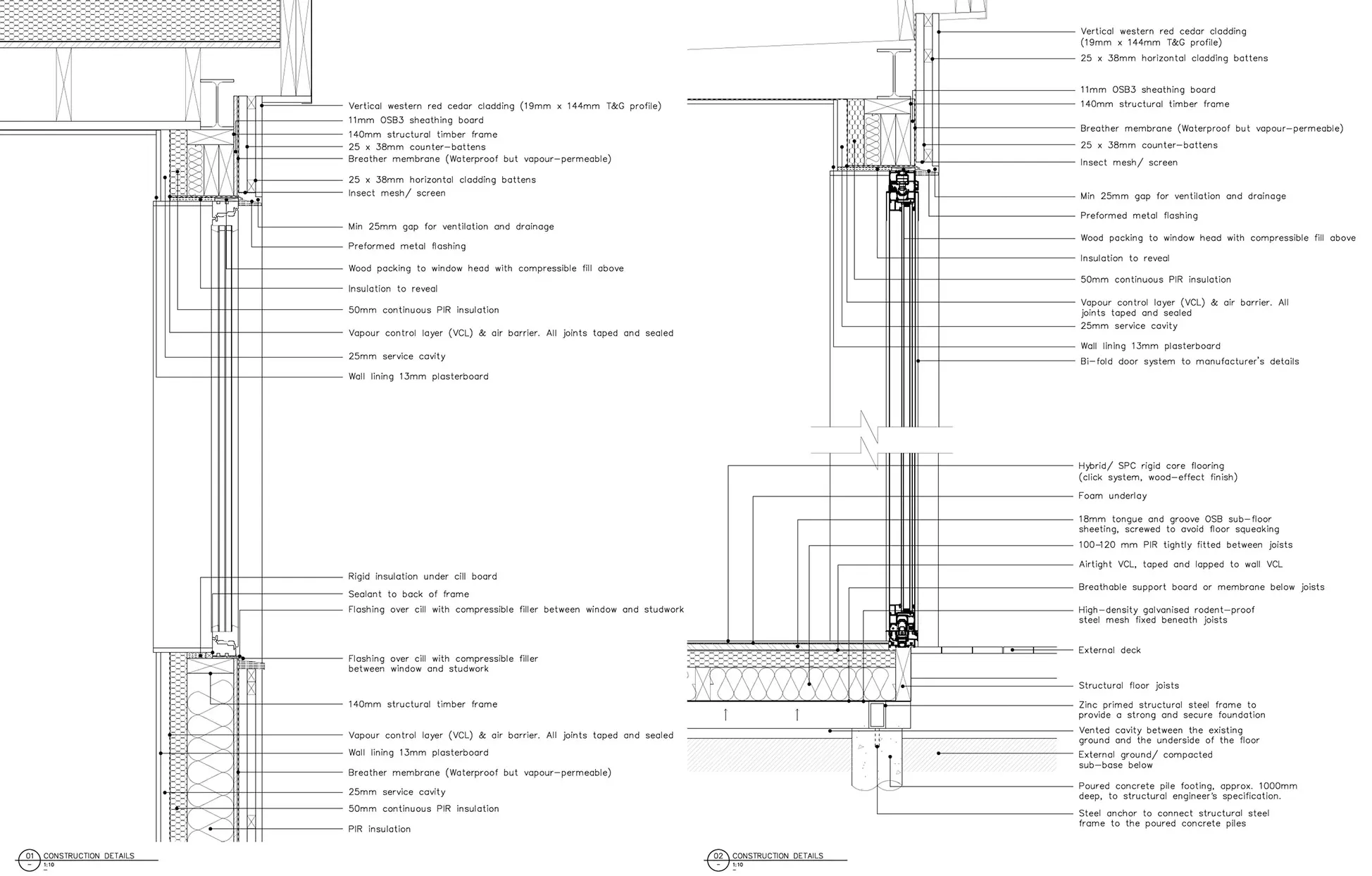

Typical construction details
Typical construction details

About

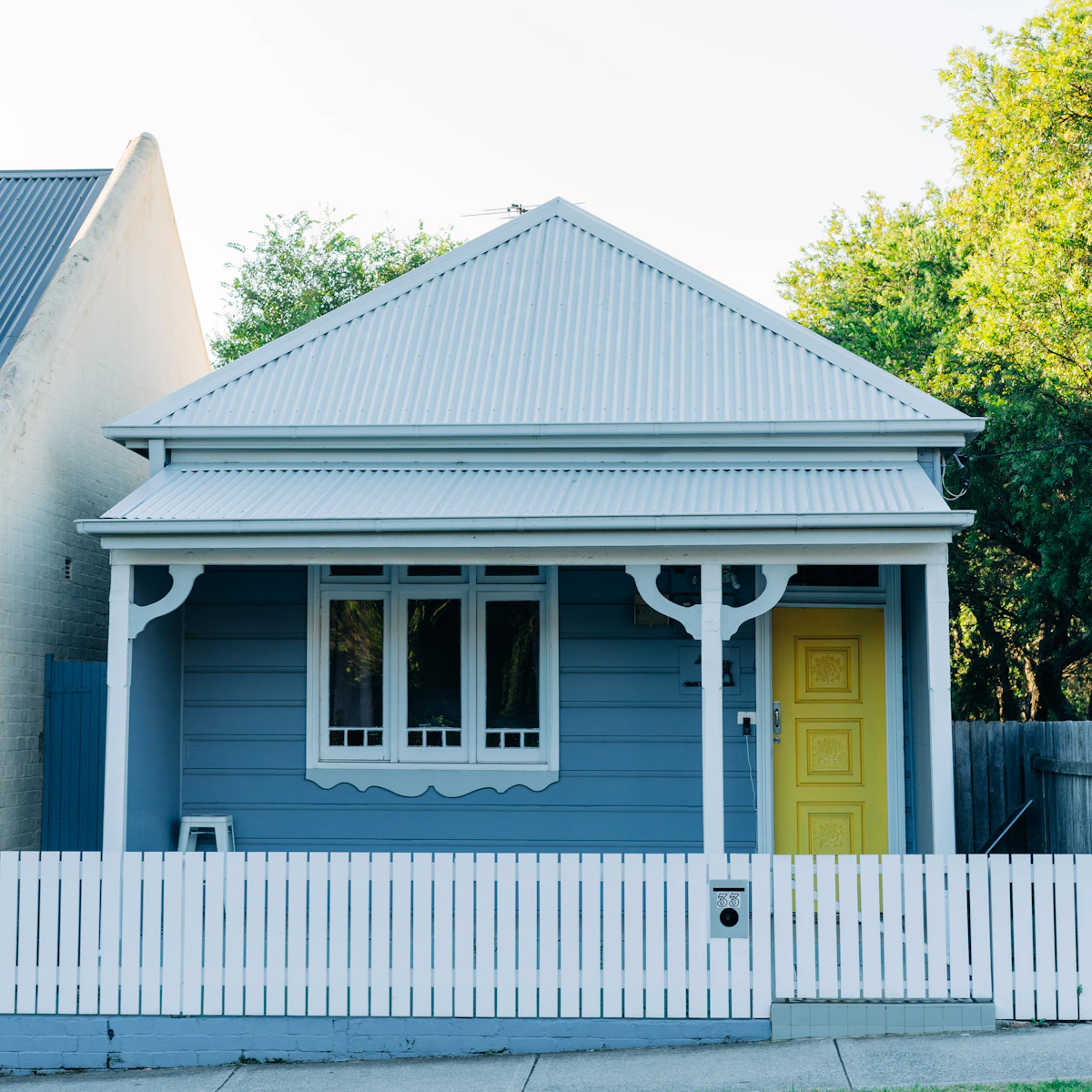

Central Coast residential home

Based on the Central Coast. Focused on getting it built.

I'm a local building designer and draftsperson working out of Bateau Bay. I focus on practical, buildable drawings — the kind that actually help builders and owners make decisions on site, rather than just satisfy the paperwork.

My background spans residential projects in both Australia and the UK, across alterations, new builds, granny flats, DA packages, CDC packages, as-builts and 3D visualisation.

ABN 90 398 688 628

Process

Simple to get started.

01

Get in touch

Drop me a message with your project type, location, timeline and any existing drawings.

02

Scope & quote

I'll come back with a clear scope and quote. If a site visit is needed, we'll arrange it.

03

Drawings produced

I work through the drawing set, keeping you updated. Revisions are part of the process.

04

Approval ready

Final drawings issued ready for council lodgement, builder pricing or client sign-off.

Coverage

Central Coast
and beyond.

Based in Bateau Bay and available across the region. Remote collaboration is easy, with site visits when they add value.

Central Coast region

Connect

Have a project
in mind?

Whether you have a detailed brief or just a rough idea — happy to have a chat and see if I can help.
